Orbea Terra M30Team

Orbea Terra M30Team
  • Color: Cosmic Carbon View-Metallic Olive Green

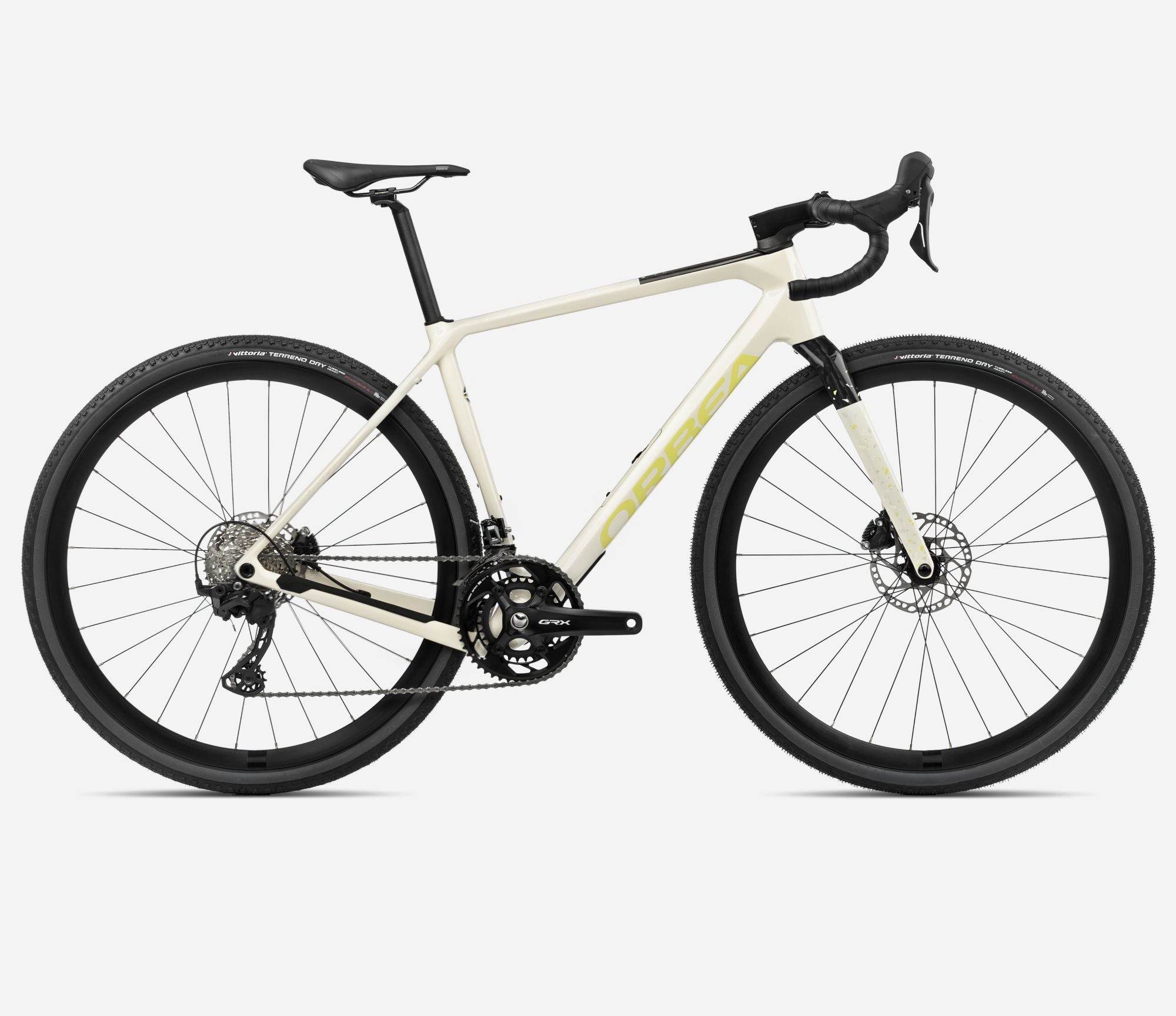

  • Color: Ivory White-Spicy Lime
$3,599.00
Color: Cosmic Carbon View-Metallic Olive Green
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

GRAVEL FROM THE GROUND UP
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

GRAVEL GEOMETRY
Terra offers a completely new gravel design with gravel specific geometry. We have worked hard, using all our experience from both Road and MTB, to deliver a balanced ride, with precise handling and maximum control.

A MORE CAPABLE BIKE
Gravel is a universe of different users and terrains. For that reason Terra is a complete platform with different models in aluminium and carbon, offering the most inclusive solutions that won’t leave anyone indifferent.

TIRE CLEARANCE
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.

DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.

LOCKR
Our Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Seat Tube (C-T) (mm)425 458491524557590
Top Tube (EFF) (mm)526 539558570590603
Head Tube (mm)110 131152178199220
Chainstay (mm)430 430430430430430
BB Height (mm)263 / 278 263 / 278263 / 278265 / 278265 / 278265 / 278
BB Drop (mm)78 7878787878
Wheelbase (mm)1020 10301039105410631072
Head Angle70° 70.5°71°71°71.5°72°
Seat Angle74° 74°73.5°73.5°73°73°
Standover (30c-40c) (mm)704 / 718 731 / 746759 / 773788 / 803815 / 830838 / 853
Reach (mm)375 382389395402409
Stack (mm)526 548570592614636
Fork Length (mm)390 390390390390390
Trail (30-622) (mm)66 6259595653
Trail (40-622)71 6864646158
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small155 - 166 5'1" - 5'5"
Small167 - 172 5'5" - 5'8"
Medium173 - 179 5'8" - 5'10"
Large180 - 185 5'10" - 6'1"
X-Large186 - 191 6'1" - 6'3"
XX-Large192 - 207 6'3" - 6'9"

Specs

Pedals Sold Separately
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Stem OC Road Performance RP21, -6º
Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box
Tires Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
Brakes Shimano RX400 Hydraulic disc
Saddle Prologo Akero AGX STN size 155mm
Wheels Alloy, Tubeless, 700c, 21c
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano GRX RX610 30x46t
Seatpost Carbon, 27.2mm, Setback 20
Shifters Shimano GRX RX610
Rear Derailleur Shimano GRX RX820
Front Derailleur Shimano GRX RX820

* Subject to change without notice.

Videos

Trek Top Fuel

Part Numbers

Option UPC MPN Store SKU
Cosmic Carbon View-Metallic Olive Green / XX-Large / 700c 8434446491122 R14610DJ
Cosmic Carbon View-Metallic Olive Green / Small / 700c 8434446491009 R14603DJ
Ivory White-Spicy Lime / X-Small / 700c 8434446490187 R14602DI
Ivory White-Spicy Lime / XX-Large / 700c 8434446491115 R14610DI
Cosmic Carbon View-Metallic Olive Green / X-Small / 700c 8434446490408 R14602DJ
Cosmic Carbon View-Metallic Olive Green / Large / 700c 8434446491061 R14607DJ
Ivory White-Spicy Lime / Medium / 700c 8434446491023 R14605DI 210000004765
Ivory White-Spicy Lime / Small / 700c 8434446490750 R14603DI
Cosmic Carbon View-Metallic Olive Green / X-Large / 700c 8434446491092 R14609DJ
Ivory White-Spicy Lime / Large / 700c 8434446491054 R14607DI
Ivory White-Spicy Lime / X-Large / 700c 8434446491085 R14609DI
Cosmic Carbon View-Metallic Olive Green / Medium / 700c 8434446491030 R14605DJ
