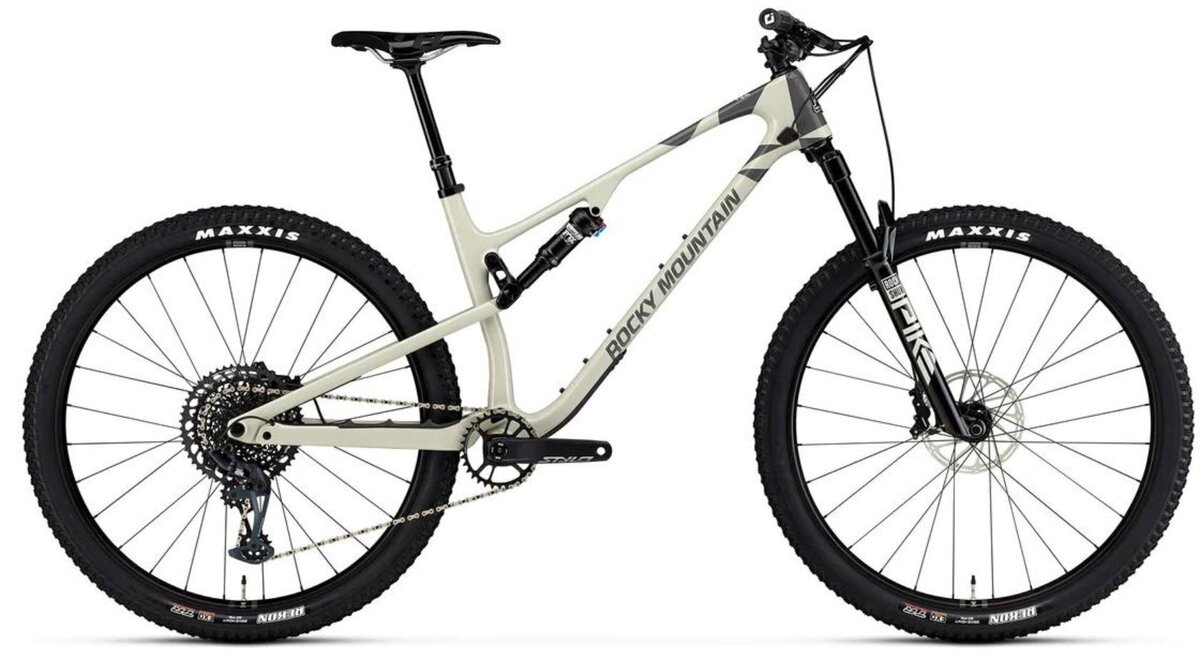

Rocky Mountain Element Carbon 50 SRAM
$4,239.00 - $5,299.00
$5,299.00
Details
Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
| Size | X-Small (27.5) | Small (29) | Medium (29) | Large (29) |
|---|---|---|---|---|
| Ride-4 Position | Pos. 1 Slack | Pos. 1 Slack | Pos. 1 Slack | Pos. 1 Slack |
| Top Tube Horizontal (mm) | 542 | 577 | 605 | 632 |
| Head Tube Angle (deg) | 64.7 | 65 | 65 | 65 |
| Head Tube Length (mm) | 90 | 105 | 115 | 125 |
| Seat Tube Angle (deg) | 75.7 | 76 | 76 | 76 |
| Seat Tube Length (mm) | 355 | 380 | 420 | 445 |
| Rear Centre (mm) | 426 | 436 | 436 | 436 |
| Bottom Bracket Drop (mm) | 28 | 47 | 47 | 47 |
| Reach (mm) | 397 | 425 | 450 | 475 |
| Stack (mm) | 561 | 606 | 615 | 624 |
| Standover Height (mm) | 769 | 810 | 808 | 806 |
| Wheelbase (mm) | 1127 | 1173 | 1202 | 1231 |
| X-Small | 27.5”: 142.5 - 157.5 cm / 4’8” - 5’2” |
|---|---|
| Small | 29”: 157.5 - 170 cm / 5’2” - 5’7” |
| Medium | 29”: 167.5 - 177.5 cm / 5’6” - 5’10” |
| Large | 29”: 175 - 188 cm / 5’9” - 6’2” |
| X-Large | 29”: 185.5 - 198 cm / 6’1” - 6’6” |
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | RockShox Pike RC 130mm | RUSH Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Headset | FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ |
| Rims/Wheels | WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
| Hubs | DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Tires | F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready // |
| Crankset | Sram Stylo 6K Eagle | 32T | DUB Spindle | Crankarm Length: XS = 165mm | SM - XL = 170mm |
| Bottom Bracket | Sram BB92 DUB |
| Chain | Sram GX Eagle |
| Rear Derailleur | Sram GX Eagle |
| Rear Cogs | Sram XG-1275 10-52T |
| Shifters | Sram GX Eagle |
| Handlebars | Rocky Mountain AM Carbon 780mm |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 XC | 5° Rise | All Sizes = 50mm |
| Brakes | Sram G2 R 4 Piston | Resin Pads |
| Saddle | WTB Silverado Race 142 |
| Seat Post | X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Weight | 27.896|12.68 KGS |
* Subject to change without notice.
