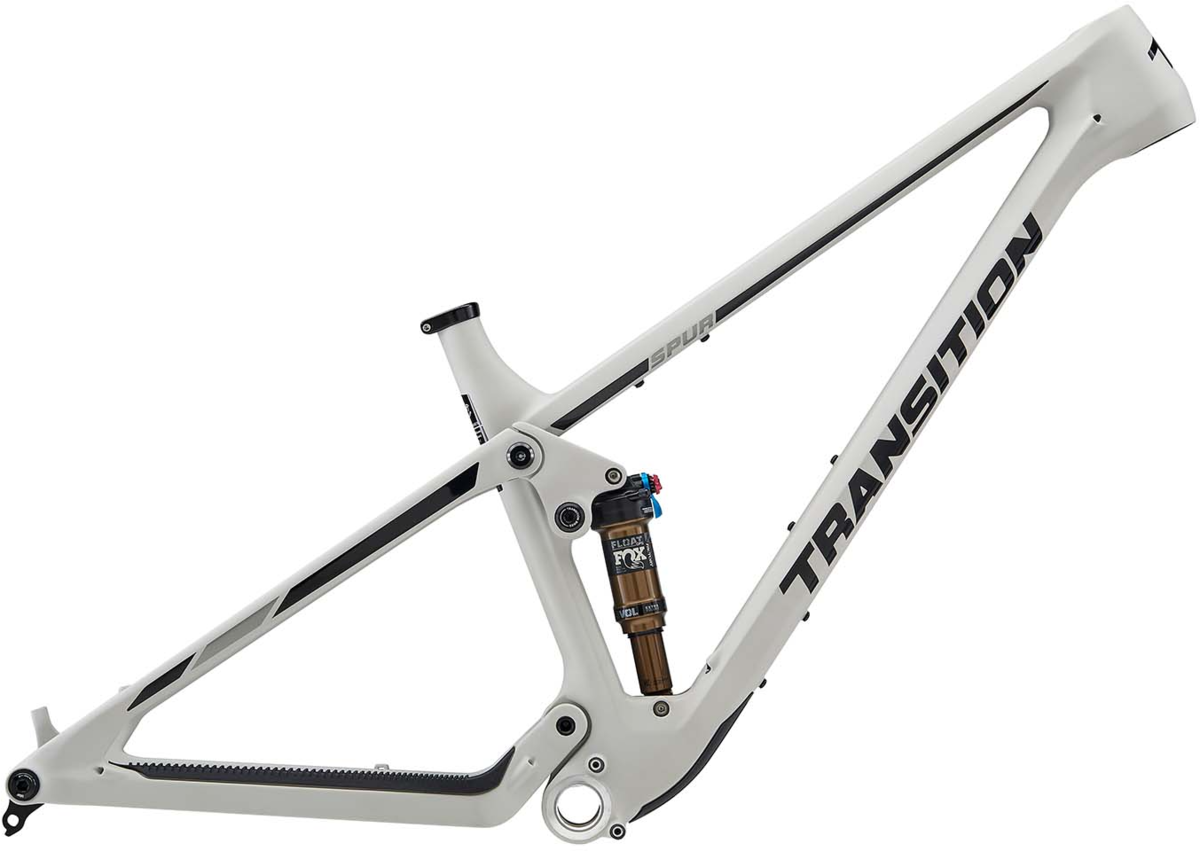

Transition Spur Frame

Transition Spur Frame
$3,199.00
Color: Hazy Grey
Size: Medium
Please select options Unavailable

Details

The All-Country Bike

Effortlessly explore, seek, and pursue the mountain in ways you never imagined.

The Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti-gravity feel and laser-pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedaling. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster.

Sizes:
FRAME SIZE SMALLMEDIUMLARGEX-LARGE
REACH 425 455 480 510
STACK 600 610 619 632
EFFECTIVE TT LENGTH 569 602 630 664
SEAT TUBE LENGTH 380 410 460 500
EFFECTIVE ST ANGLE 76.7° 76.2° 75.9° 75.6°
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE 600 660 720 780
ACTUAL ST ANGLE 72° 72° 72° 72°
SEAT TUBE OFFSET AT BB 51 51 51 51
HEAD TUBE LENGTH 100 110 120 135
HEAD TUBE ANGLE 66.0° 66.0° 66.0° 66.0°
CHAINSTAY LENGTH 435 435 435 435
WHEELBASE 1156 1190 1219 1255
BOTTOM BRACKET DROP 40 40 40 40
ESTIMATED BB HEIGHT 335 335 335 335
STAND OVER HEIGHT 662 667 670 677
FORK OFFSET 44 44 44 44
Sizes:
FRAME SIZEFRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
X-Small X-SMALL 143 - 158 4'8" - 5'2"
SMALL SMALL 153 - 170 5'0" - 5'7"
MEDIUM MEDIUM 163 - 183 5'4" - 6'0"
LARGE LARGE 175 - 190 5'9" - 6'3"
X-LARGE X-LARGE 183 - 200 6'0" - 6'7"
XX-LARGE XX-LARGE 188 - 205 6'2" - 6'9"

Specs

Frame Spur Carbon 120mm (UDH)
Fork Sold Separately
Rear Shock Fox Float DPS Factory 3 Position (190x45mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Hazy Grey / Medium 769165686633 01.25.10.4412 210000004977
