Details

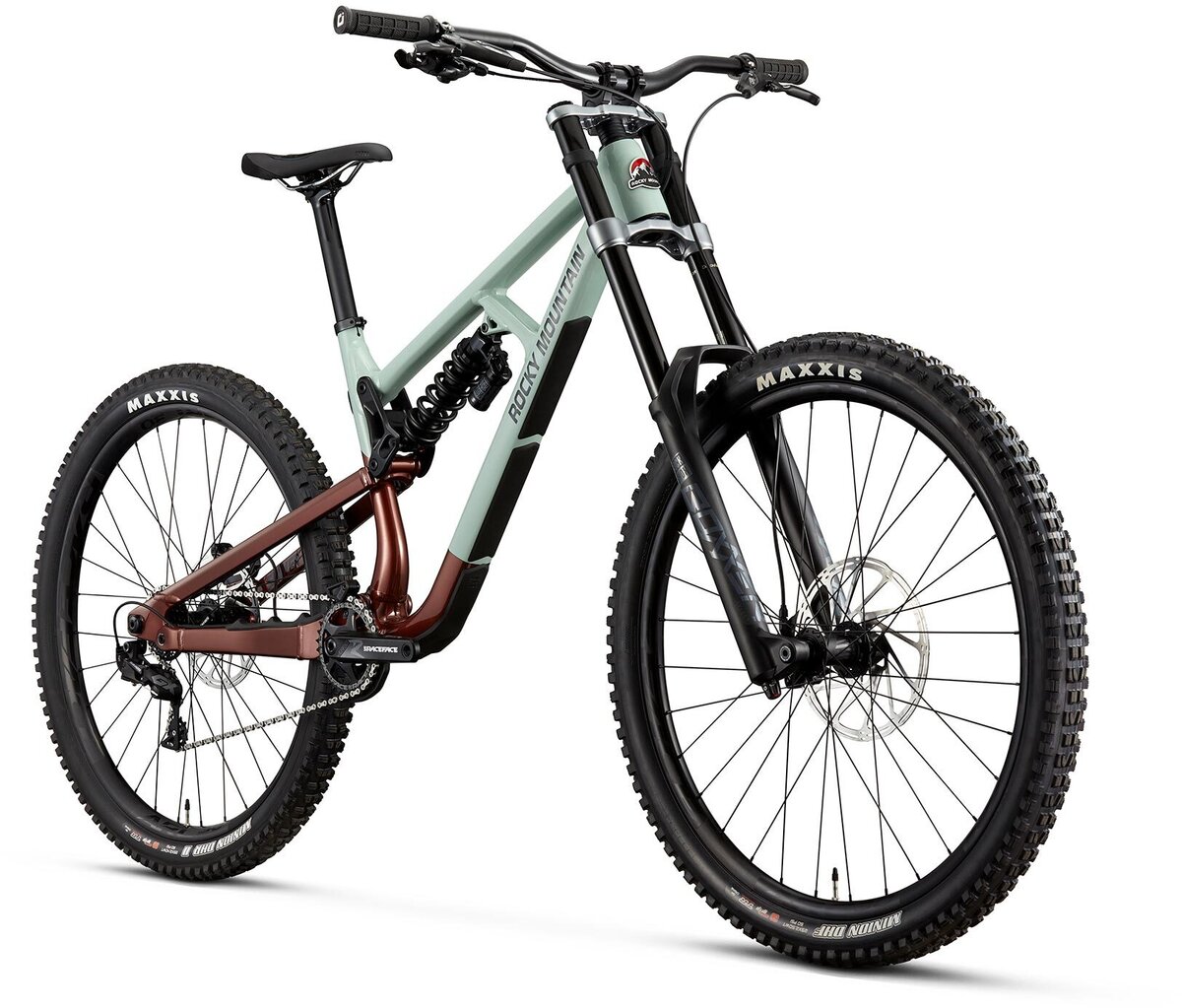

The ultimate big mountain platform, the Slayer is meant for riding fast and sending it deep.
Whether you're smashing through the roughest trails imaginable or scrubbing lips in the park, the Slayer is built for those who charge.
Specs
Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 180mm Travel. FORM™ Alloy Rear Triangle |
---|---|
Fork | RockShox Boxxer Select RC 200mm | 27.5 = 36mm Offset | 29 = 46mm Offset |
Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | RockShox Super Deluxe Coil Select | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230 x 65mm | Size-Specific tune in FAQ |
Rims/Wheels | Race Face ARC HD 30 | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
Hubs | F: Rocky Mountain Sealed Boost 20mm R: Sram MTH 746 Boost 148mm |
Spokes | 2.0 Stainless |
Tires | F: Maxxis Minion DHF 2.5 WT 3C MaxxGrip DH Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxGrip DH Tubeless Ready |
Crankset | Race Face Aeffect R Cinch | 32T | 24mm Spindle | 170mm Crank Length |
Bottom Bracket | Shimano SM-BBMT500 |
Chain | KMC X11-1 |
Rear Derailleur | Sram GX DH |
Shifters | Sram GX DH |
Handlebars | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 35 CNC DH |
Brakes | Sram Guide RE 4 Piston | Metal Pads | F:Sram Centerline 220mm | R:Sram Centerline 200mm |
Saddle | WTB Volt Race 142 |
Seat Post | Rocky Mountain SL 30.9mm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Red/Blue / Medium | 770416446395 | B0280MD3 | 210000003763 |
